First Fire in Tall Rumford (movie). |
Buckley Rumford Fireplaces Tall Fireplaces "A tall Rumford is just a narrow big fireplace rather than a tall small fireplace." To ask technical questions or contribute to the discussion click here
Build it tall
|
Click on pictures for more detail.
Back to Main Gallery
|

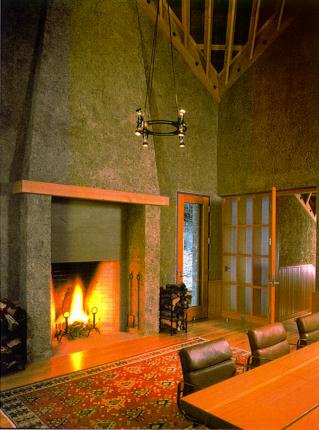

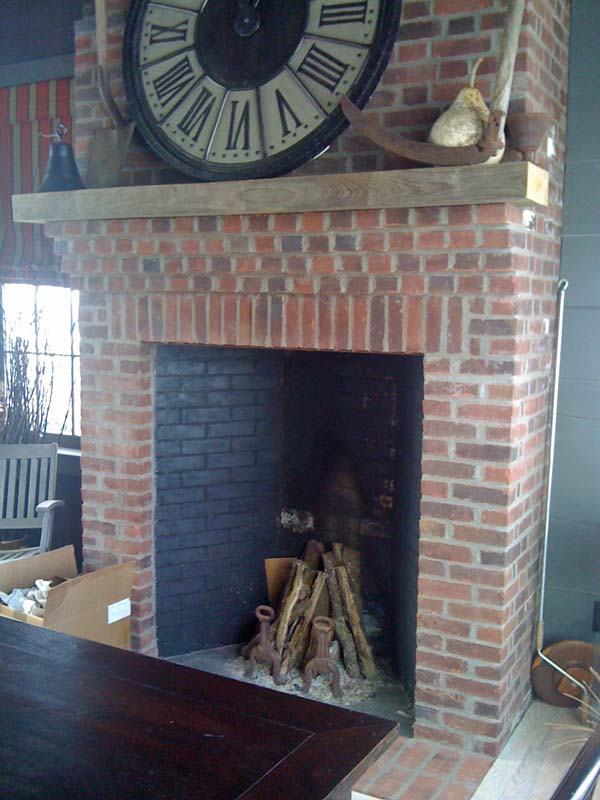

We used to worry about making fireplaces with extremely tall openings work. Our Rumfords are designed to have square openings - as tall as they are wide. But then we reasoned that we have no trouble making a 60" wide fireplace work even if it's 60" tall. Why should we worry about a 48" wide fireplace that's 60" tall? Just think of it as a narrow big fireplace rather than a tall small fireplace. What that means, of course, is that we size the throat and flue bigger as we would for the 60" Rumford. Build the fireplace according to the plan at www.rumford.com/R6054plan.gif - 20" deep, with the 42" Vestal damper and 20"x20" flue - only build the firebox 48" wide instead of 60" wide. One customer's saga getting a 36" wide by 42" tall Rumford built correctly.
|
|

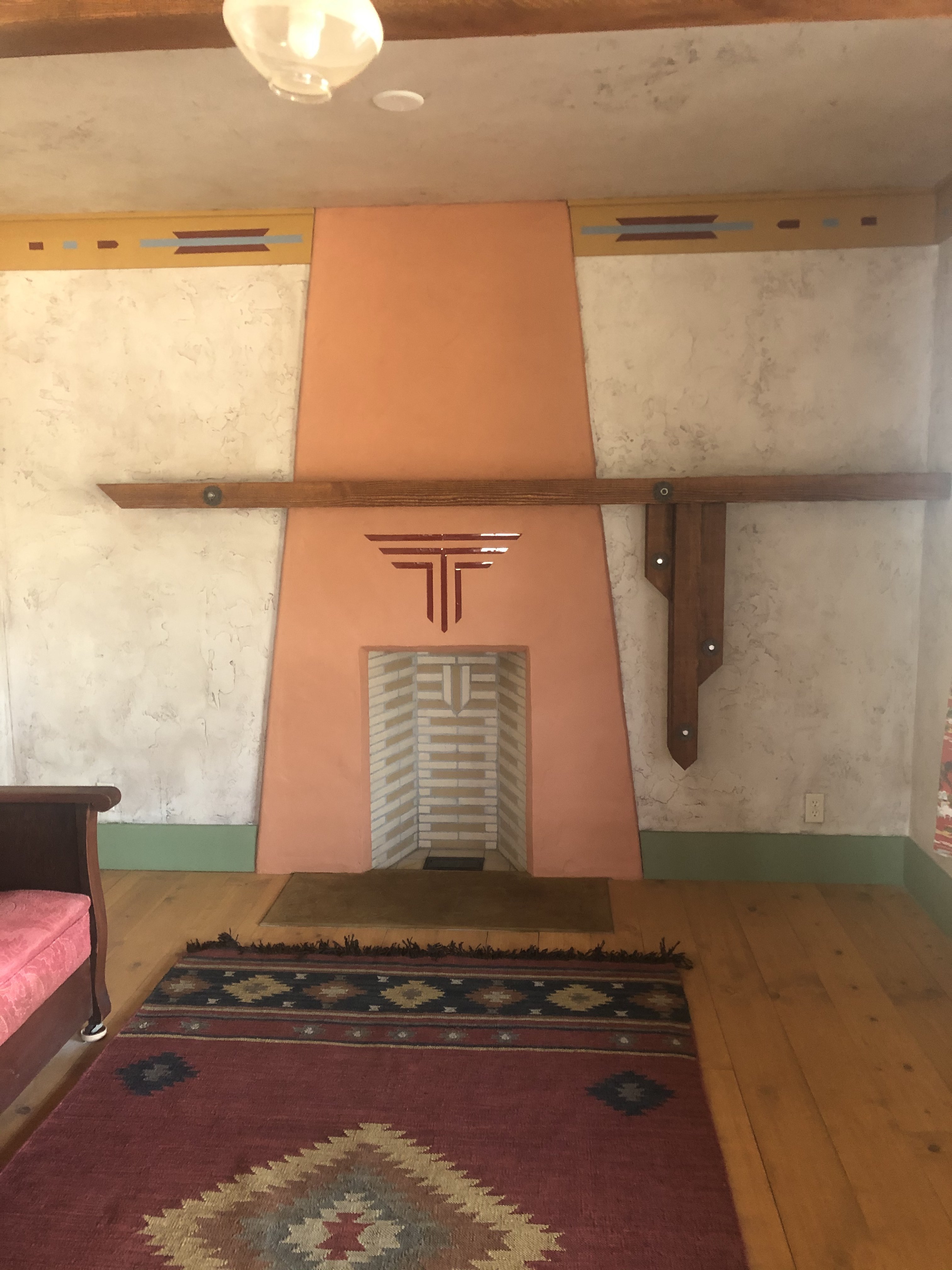

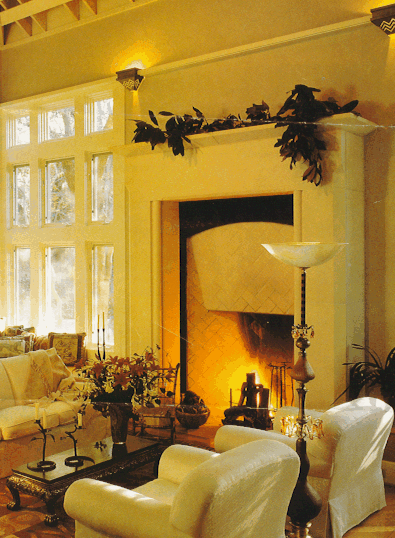

The fireplace doesn't have to be tall to look tall. The first tall fireplace we designed was a small 30" wide Rumford that the client wanted to be 48" tall like a MacIntosh-inspired coal-burning fireplace they had seen. We pulled it off by building it as a narrow 48" Rumford but our first idea was to fake it by building a 30" by 30" Rumford with an inner hearth raised 18", recessed about an inch, painted black and fitted with a grille to make it looks like a coal grate in a 48" tall fireplace. We have seen other fireplaces that were made to look tall. See an example and another.
|
[back to top of page]
|
10/29/03 Hello, We are in the process of building-designing a Rumford. The owner would like the opening to be 48 wide by 60 high. I was planning on using the precast throat and smoke chamber and also the stainless damper. We were wondering if using two 12 inch round flues would be sufficient? I am worried that the height of the opening is to high. We are planning on using a clay chimney pot on top for design. One on each flue. The total height of the chimney is going to be about 30 ft. The owner would also like tumbled-old looking firebrick. We are going to lay them in a herringbone pattern. Please email me back so I can figure this out. Your website is great! Thank you
Thomas M. Hadfield
Tom, We used to worry about making fireplaces with extremely tall openings work. Our Rumfords are designed to have square openings - as tall as they are wide. But then we reasoned that we have no trouble making a 60" wide fireplace work even if it's 60" tall. Why should we worry about a 48" wide fireplace that's 60" tall? Just think of it as a narrow big fireplace rather than a tall small fireplace. What that means, of course, is that we size the throat and flue bigger as we would for the 60" Rumford. Build your fireplace according to the plan at www.rumford.com/R6054plan.gif - 20" deep, with the 42" Vestal damper and 20"x20" flue, only build the firebox 48" wide instead of 60" wide. As you can guess I don't think your idea of using two 12" round flues will work. Two flues are never as good as one flue the right size. See http://www.rumford.com/tech5.html You need more like the 300 square inches of flue area provided by the 20"x20" flues rather than the 200 square inches and all the unnecessary surface area and turbulence you would get with two round 12" flues. We have some firebrick options shown at www.rumford.com/firebrick.html Any of them could be chipped up or "tumbled", I suppose. Usually we get complaints about the quality of the firebrick so, if you want tumbled, our dealers will probably have such a deal for you. Using anything but firebrick for the firebox is legal and safe enough if the firebox thickness is increased in accordance with code but the non-firebrick will probably crack and spall with thermal shock so prepare your customer or you'll be back every few weeks or so replacing yet another brick or stone. See comments at www.rumford.com/cookfp.html We have a few large chimney pots that will fit the 20"x20" flue. See www.rumford.com/superiorclay/superiortops.html Or you could set two smaller pots on ether side of the real flue. And you could use four smaller pots to construct a "cluster" of four pots that would actually be one big pot. See www.rumford.com/chimneys/NSjob.html
Warm regards, |
