Rumford Technical Discussion
Arched Openings
To ask technical questions or contribute to the discussion click here

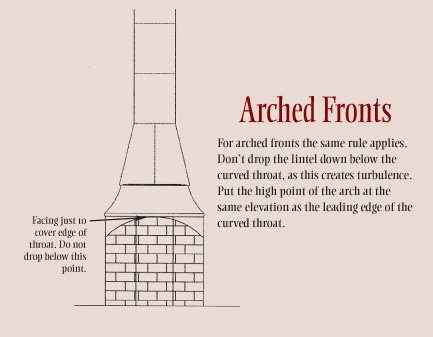

To make an arched fireplace opening make the top of the arch tangent with the bottom of the rounded Rumford throat.*

Then where the arch drops below the throat at each side** fill those pockets with mortar or plaster and feather into the throat so as to make a smooth, streamlined, compound curved throat out of our simple curved throat.

Another way

_____
* The code requires that ...

"the throat is at least 12 inches (305 mm) above the lintel and is at least 1/20 the cross-sectional area of the fireplace opening."

The code refers to the narrowest top of the throat - not the whole throat component. The problem is one of semantics - we call the whole rounded throat component the "throat" but the code means the narrowest part or top of our throat component - the part that is "at least 1/20 the cross-sectional area of the fireplace opening." - Jim

** Called the "voussoir" as John Walkup in North Carolina pointed out.
