Jim,

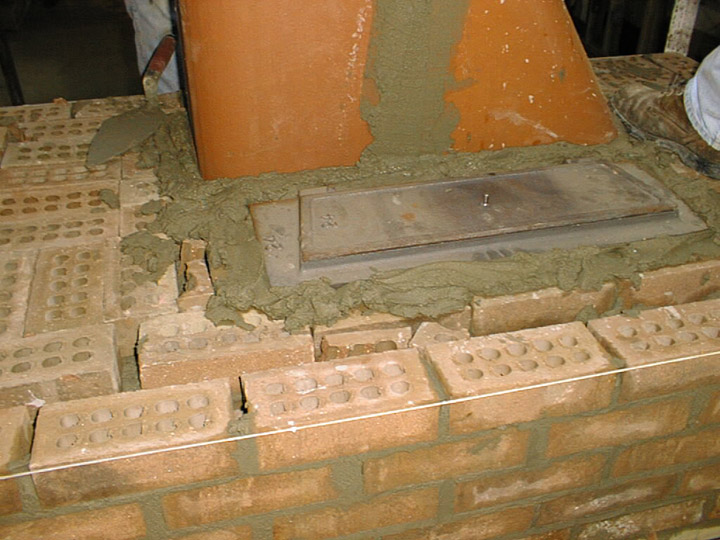

Three pictures of the back to back Rumford project in Dallas attached.

Thanks,
David Hudson

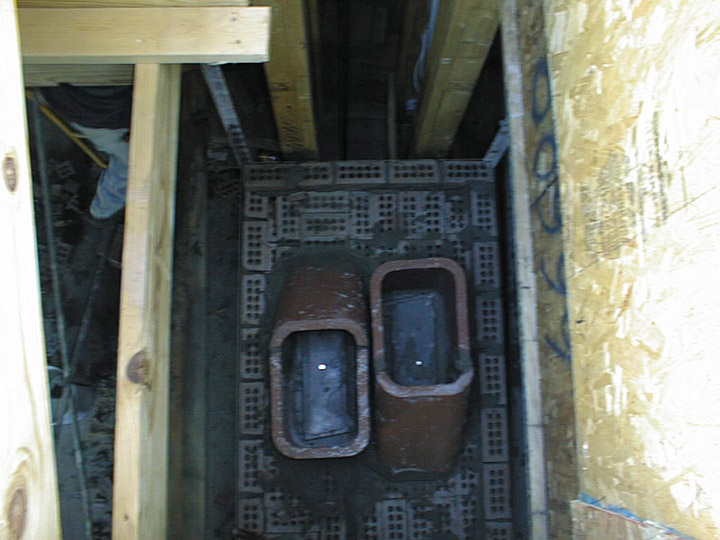

To meet code there should be a 4" masonry partition or wythe between the smoke chambers and flue liners. - Jim
