The Rumford Store
Class A Stainless Steel Chimney
5/26/18

Large diameter "Class A - All Fuel" chimneys for masonry Rumford fireplaces

Not the lasting value of masonry but, hey.

  • Listed to UL 103
  • Sizes to 24" in Diameter
  • Competitive Pricing
  • Free Freight in US and Canada

  • Rumford Sizing Instructions
  • Installation and Operations Instructions
  • Technical Assistance

    Order on-line below
    But figuring out all the parts you need can be complicated so, if you like, let us do it.
    Request Quote
    by email or call 360 385 9974

  • .
    Class A 10" Metal Chimney
    For 30" Rumford with 12"x12" smoke chamber

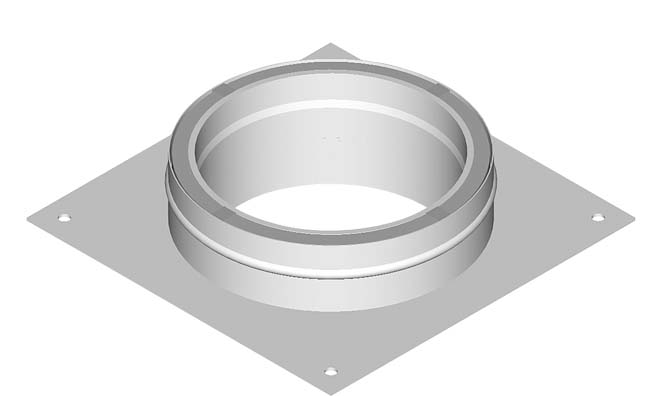

    Anchor Plate RM-10RAP ...................... $142.00
    Anchor Plate + Damper RM-10RAPD .. $334.00

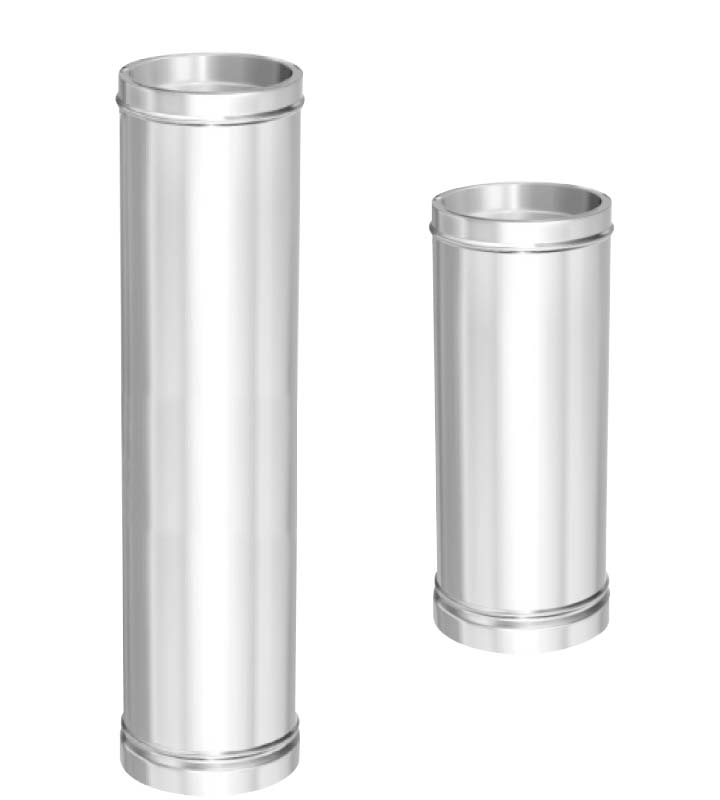

    Length 48" RC-10RIL4 ......................... $348.00
    Length 24" RC-10RIL2 ......................... $224.00
    Length 18" RC-10RIL18 ....................... $192.00
    Length 12" - RC-10RIL1 ....................... $146.00
    Length Adjustable 24" RC-10RILA2 .... $313.00
    Length Adjustable 12" RC-10RILA1 .... $204.00
    Elbow 15° RE-10RIE15 ........................ $249.00
    Elbow 30° RE-10RIE30 ........................ $305.00
    Elbow 45° RE-10RIE45 ........................ $320.00
    Offset Support RM-10ROS ..................... $90.00
    Radiation shield RM-10RRS ................... $89.00
    Flashing Flat RF-10RF .......................... $131.00
    Flashing 1/12 - 7/12 RF-10RA .............. $151.00
    Flashing 8/12 - 12/12 RF-10RB ............ $177.00
    Storm Collar RM-10RSCSS .................... $48.00
    Rain Cap RM-10RRC ............................ $196.00
    Rain Cap Base RM-10RRCB .................. $98.00
    Rain Cap Screen RM-10RRCFS ............. $31.00

    Class A 12" Metal Chimney
    For 36" Rumford with 13"x13" smoke chamber

    Anchor Plate RM-12RAP ...................... $167.00
    Anchor Plate + Damper RM-12RAPD .. $353.00
    Length 48" RC-12RIL4 ......................... $374.00
    Length 24" RC-12RIL2 ......................... $239.00
    Length 18" RC-12RIL18 ....................... $205.00
    Length 12" - RC-12RIL1 ....................... $155.00
    Length Adjustable 24" RC-12RILA2 .... $335.00
    Length Adjustable 12" RC-12RILA1 .... $217.00
    Elbow 15° RE-12RIE15 ........................ $291.00
    Elbow 30° RE-12RIE30 ........................ $328.00
    Elbow 45° RE-12RIE45 ........................ $346.00
    Offset Support RM-12ROS ................... $161.00
    Radiation shield RM-12RRS ................... $95.00
    Flashing Flat RF-12RF .......................... $141.00
    Flashing 1/12 - 7/12 RF-12RA .............. $163.00
    Flashing 8/12 - 12/12 RF-12RB ............ $191.00
    Storm Collar RM-12RSCSS .................... $53.00
    Rain Cap RM-12RRC ............................ $205.00
    Rain Cap Base RM-12RRCB ................ $102.00
    Rain Cap Screen RM-12RRCFS ............. $34.00

    Class A 14" Metal Chimney
    For 42" Rumford with 16"x16" smoke chamber

    Anchor Plate RM-14RAP ...................... $174.00
    Anchor Plate + Damper RM-14RAPD .. $385.00
    Length 48" RC-14RIL4 ......................... $413.00
    Length 24" RC-14RIL2 ......................... $261.00
    Length 18" RC-14RIL18 ....................... $222.00
    Length 12" - RC-14RIL1 ....................... $167.00
    Length Adjustable 24" RC-14RILA2 .... $366.00
    Length Adjustable 12" RC-14RILA1 .... $235.00
    Elbow 15° RE-14RIE15 ........................ $314.00
    Elbow 30° RE-14RIE30 ........................ $358.00
    Elbow 45° RE-14RIE45 ........................ $360.00
    Offset Support RM-14ROS ................... $227.00
    Radiation shield RM-14RRS ................. $103.00
    Flashing Flat RF-14RF .......................... $161.00
    Flashing 1/12 - 7/12 RF-14RA .............. $185.00
    Flashing 8/12 - 12/12 RF-14RB ............ $217.00
    Storm Collar RM-14RSCSS .................... $75.00
    Rain Cap RM-14RRC ............................ $247.00
    Rain Cap Base RM-14RRCB ................ $124.00
    Rain Cap Screen RM-14RRCFS ............. $42.00

    Class A 16" Metal Chimney
    For 48" Rumford with 18"x18" smoke chamber

    Anchor Plate RM-16RAP ...................... $181.00
    Anchor Plate + Damper RM-16RAPD .. $429.00
    Length 48" RC-16RIL4 ......................... $591.00
    Length 24" RC-16RIL2 ......................... $353.00
    Length 18" RC-16RIL18 ....................... $292.00
    Length 12" - RC-16RIL1 ....................... $216.00
    Length Adjustable 24" RC-16RILA2 .... $494.00
    Length Adjustable 12" RC-16RILA1 .... $302.00
    Elbow 15° RE-16RIE15 ........................ $357.00
    Elbow 30° RE-16RIE30 ........................ $408.00
    Elbow 45° RE-16RIE45 ........................ $436.00
    Offset Support RM-16ROS ................... $253.00
    Radiation shield RM-16RRS ................. $109.00
    Flashing Flat RF-16RF .......................... $170.00
    Flashing 1/12 - 7/12 RF-16RA .............. $195.00
    Flashing 8/12 - 12/12 RF-16RB ............ $230.00
    Storm Collar RM-16RSCSS .................... $84.00
    Rain Cap RM-16RRC ............................ $285.00
    Rain Cap Base RM-16RRCB ................ $142.00
    Rain Cap Screen RM-16RRCFS ............. $48.00

    Class A 18" Metal Chimney
    For 60" Rumford with 20"x20" smoke chamber

    Anchor Plate RM-18RAP ...................... $183.00
    Anchor Plate + Damper RM-18RAPD .. $504.00
    Length 48" RC-18RIL4 ......................... $732.00
    Length 24" RC-18RIL2 ......................... $429.00
    Length 18" RC-18RIL18 ....................... $350.00
    Length 12" - RC-18RIL1 ....................... $258.00
    Length Adjustable 24" RC-18RILA2 .... $601.00
    Length Adjustable 12" RC-18RILA1 .... $361.00
    Elbow 15° RE-18RIE15 ........................ $386.00
    Elbow 30° RE-18RIE30 ........................ $441.00
    Elbow 45° RE-18RIE45 ........................ $482.00
    Offset Support RM-18ROS ................... $286.00
    Radiation shield RM-18RRS ................. $120.00
    Flashing Flat RF-18RF .......................... $205.00
    Flashing 1/12 - 7/12 RF-18RA .............. $236.00
    Flashing 8/12 - 12/12 RF-18RB ............ $277.00
    Storm Collar RM-18RSCSS .................... $97.00
    Rain Cap RM-18RRC ............................ $328.00
    Rain Cap Base RM-18RRCB ................ $164.00
    Rain Cap Screen RM-18RRCFS ............. $56.00

    Class A 20" Metal Chimney
    For 72" Rumford with 24"x24" smoke chamber

    Anchor Plate RM-20RAP ...................... $213.00
    Anchor Plate + Damper RM-20RAPD .. $578.00
    Length 48" RC-20RIL4 ......................... $815.00
    Length 24" RC-20RIL2 ......................... $477.00
    Length 18" RC-20RIL18 ....................... $391.00
    Length 12" - RC-20RIL1 ....................... $289.00
    Length Adjustable 24" RC-20RILA2 .... $668.00
    Length Adjustable 12" RC-20RILA1 .... $405.00
    Elbow 15° RE-20RIE15 ........................ $424.00
    Elbow 30° RE-20RIE30 ........................ $489.00
    Elbow 45° RE-20RIE45 ........................ $549.00
    Offset Support RM-20ROS ................... $357.00
    Radiation shield RM-20RRS ................. $131.00
    Flashing Flat RF-20RF .......................... $261.00
    Flashing 1/12 - 7/12 RF-20RA .............. $300.00
    Flashing 8/12 - 12/12 RF-20RB ............ $352.00
    Storm Collar RM-18RSCSS .................. $116.00
    Rain Cap RM-20RRC ............................ $403.00
    Rain Cap Base RM-20RRCB ................ $202.00
    Rain Cap Screen RM-20RRCFS ............. $66.00

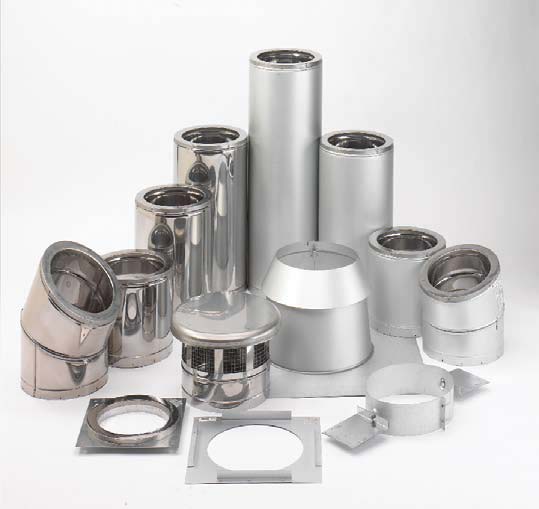

    Included above are the components most often used to vent a Rumford fireplace with a Class A metal chimney.

    Less expensive Galvaume is available in chimneys 16" in diameter and larger as are wall and roof braces and 22" and 24" diameter chimney.

    Contact us by by email or call 360 385 9974
