Buckley Rumford Fireplaces
One-Piece Throat System
12/26/23

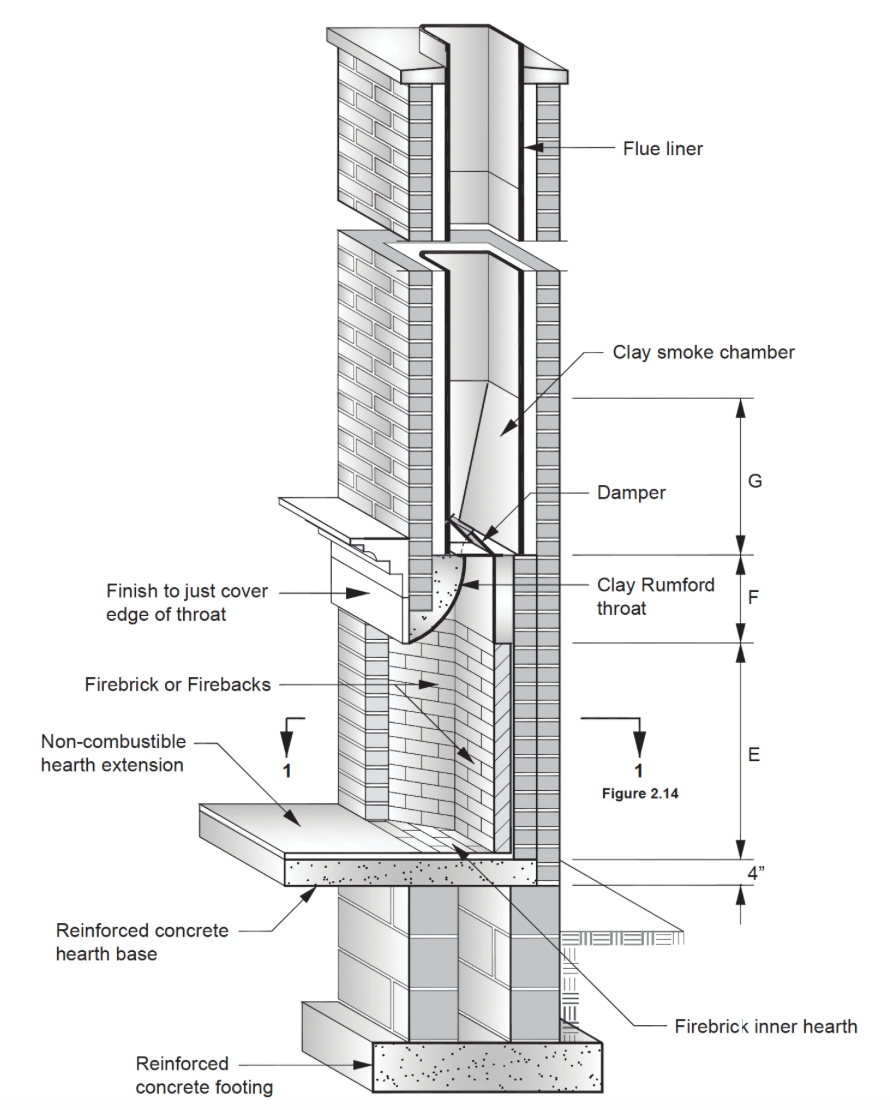

FIREPLACE THROAT DAMPER SMOKE
CHAMBER
FLUE OTHER DIMENSIONS
A        B        C        D        E        F        G
THROAT
D x Wmax
R2428
R3030
R3636
R4242
R4848
TR24
TR30
TR36
TR42
TR48
KW24
smCI or KW30
smCI or KW36
lgCI or KW42
lgCI or KW48
812 or 1212
1212 or 1313
1216 or 1313
1616 or 1318
1620
812 or 1212
913 or 1212
1216 or 1313
1616 or 1318
1620
24"   12.5"   13.5"   13.5"   28"    12"    19"
30"   12.5"   13.5"   15"      30"    13"    19"
36"   14"     13.5"    18"      36"    14"    19"
42"    15"    15"       21"      42"   15"    19"
48"    16"    18"      22.5"    48"    16"    19"
3"x16.25"
3.5"x18.5"
4"x20"
4.5"x23.5"
5"x27.5"

Superior Clay Corporation, Uhrichsville, OH (800 848 6166)
(Design & Technical Service, Buckley Rumford Co. 360 385 9974 or buckley@rumford.com)

For large or modified Rumfords use Segmented Throat System
For damper and flue size options see Components & Accessories
